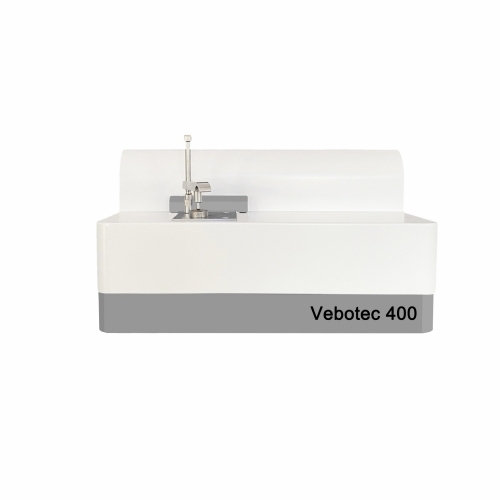

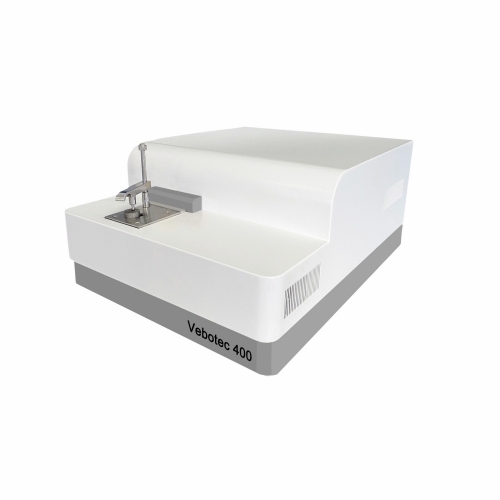

Vebotec 400 Optical Emission Spectrometer OES Metal Analyzer

Summary

The Vebotec 400 Optical Emission Spectrometer (OES) is an ideal instrument for determining various elements in diverse metal matrices, including iron, copper, aluminum, nickel, cobalt, magnesium, titanium, zinc, lead, tin, and silver. As a cost-effective, convenient, and efficient analytical solution, it is widely utilized for rapid near-furnace analysis, metal material quality control, research laboratories, and precise metal grade identification. Its application spans every stage of the metal lifecycle—from production and processing to recycling. No matter how demanding the analytical challenge, the Vebotec 400 guarantees impeccable analytical quality.

Benefiting from its compact structural design, the Vebotec 400 delivers exceptional economic benefits while offering an easy-to-use experience and outstanding space-saving efficiency. The optical system features a high-performance CMOS detector, providing full spectral coverage for all typical metal materials. Combined with a wide calibration range, it achieves accurate and reliable analysis from low-level trace elements to high-content constituents.

Application

Currently, the Vebotec 400 has become the preferred standard for metal smelting enterprises such as foundries, steel mills, and aluminum plants, as well as downstream manufacturing sectors including automotive, aerospace, and home appliances. Meanwhile, it continues to safeguard process optimization and quality control for third-party testing laboratories and metal recyclers worldwide.

Steel Plants Where needs high accuracy or elements like C, N, Cr, S, P etc.

Testing Laboratories: Commercial testing laboratories, Universities and colleges

Pure metal applications purity Al, Pb, Zn, Cu etc. – most industrial users

Regulatory compliance Very low LODs to control Pb, Cd, As etc.

Foundries which need a quick analysis near the furnace

Manufacturing Facilities

Warehouse material identification

Base: Fe, Cu, Al, Ni, Co, Mg, Ti, Zn, Pb, Sn, Ag, Mn, Cr etc

Main features

The Vebotec 400 optical emission spectrometer has a number of patented technologies that enable rapid determination of elements in metallic materials. The optical system uses a CMOS detector with a spectral range covering all typical materials. It is accurate and reliable for analysis from low-level elements to high-level elements. For different materials and different requirements, the cost-effective full-spectrum direct reading spectrometer can meet the requirements of metal manufacturing, processing industry and metal smelting for quality monitoring, material identification, material research and development.

1. Optical system with superior performance

The Paschen-Longge structure concave grating, full spectrum coverage, meets the customer's need for full element detection.

Direct optical technology and use optics made with MgF materials ensure optimum performance in the UV region.

High resolution multi-CMOS readout system, lower dark current, better detection limit, higher stability, stronger sensitivity, meet N analysis requirements.

2. Large energy digital spark light source

Fully digital intelligent composite light source DDD technology brings superior analytical performance.

The compact design and semiconductor control technology make the light source more stable and more reliable.

High-energy pre-combustion technology(HEPS), spark parameter adjustment, fully meet the excitation requirements of different substrates, different samples and different analytical elements.

3. Humanized sample spark stand design

The spark stand directly introduces the spark light into the optical system

Open sample stage for large sample testing requirements.

Change electrodes provide better performance for small sample and complex geometry samples

4. Simple argon flow design

Intelligent argon flow design and dust collection and cleaning device

The unique argon jet technology effectively eliminates the drift of the plasma during the spark process, ensuring that the CCD detector can observe the high-temperature regional light signal, improving accuracy and stability.

After sparking, pulsed argon purge improves dust removal and improves instrument short-term and long-term stability.

5. Fully intelligent vacuum measurement and control

The vacuum system is fully programmed to reduce the running time of vacuum pump while ensuring the vacuum.

The two-stage setting turns on the standby vacuum operation state when the instrument is not running.

Multi-stage vacuum isolation measures and the addition of oil filter devices ensure that optical components work in a reliable environment.

6. Convenient and quick lens cleaning device

The integrated vacuum ball valve has good isolation when cleaning the lens.

Single-plate lens design, easy to assemble and disassemble.

Cross-mechanical devices, the optical system is effectively protected without isolation.

7. Cloud computing and reading system

The computer and mobile phone (or PAD) can be displayed simultaneously for easy panel operation.

High resolution multi-CMOS readout system and FPGA, DSP and ARM technology for data acquisition.

Ethernet and TCP/IP protocols, data transmission is fast and reliable.

Data can be transmitted remotely and fully networked. Real-time monitoring and control of the operating state of the instrument.

Data can be cloud printed.

8. Dedicated spectral analysis software

The international spectrometer produces a standard dedicated spectrometer software with user-friendly interface and standardized functions.

The instrument is equipped with multiple factory calibration curves and more material analysis methods and advanced solutions in the software.

The upper and lower limits of the standard curve can be extended on site according to the material requirements of the user.

9. The instrument and software computing power is powerful

Automatic optical path calibration

Low argon consumption

Universal adjustable sample adapter

Base extension

Standardized parameter modification

Type standardization function

Safer, more open and convenient design

The result is displayed in real time, and the print report function can be customized for the user.

Software rapid diagnosis

Simple interface operation

Reliable factory calibration
